SQL Console (VectorDB)

This article introduces how to use the SQL Console to manage Baidu Cloud Vector Database (VectorDB).

Background Information

With the popularization of AI applications, cloud vector databases VectorDB have become the core infrastructure for processing high-dimensional vector data (such as image, text embeddings). Due to the insufficient support for vector database operations by traditional database management tools and the lack of a unified visualization management interface, a data management tool specifically for vector databases is particularly important.

NineData, as a new generation of cloud-native data management platforms, provides solutions for the following pain points of VectorDB:

• Operation Complexity: Vector operations need to be performed through CLI or SDK
• Visualization Absence: Unable to visually view the structure of collections/indexes
• Permission Scattering: User and role permission management relies on external systems
• Development Inefficiency: Manually writing JSON parameters, time-consuming debugging

Feature Introduction

For VectorDB databases, NineData's SQL Console covers the full process capabilities from metadata management to advanced vector operations.

Feature	Description
Visual Library Table Object Management	Supports visual tree access, viewing, and management of VectorDB's libraries, tables, columns, indexes, and other objects.
One-click Request Body Generation	Officially synchronized VectorDB operation interfaces, supporting 35 operations such as table management, index management, data update, data query, role management, and user management. Selecting automatically generates the corresponding operation's JSON request body sample in the editor.
Editor	Provides an editor, after selecting various preset VectorDB operation interfaces, adjust the request body according to needs and execute the operation.
Work Site Recovery	For scenarios such as unexpected browser exit or sudden crashes, you only need to log in to the NineData console again and open the SQL Console. The previously opened data sources and executed commands will be automatically loaded. Since the page state is saved in the cloud, it is not limited by browsers or hosts, and you can restore the work site anytime, anywhere.

Prerequisites

• The target database to be managed has been added to NineData. For how to add, please refer to Manage Data Sources.

• In the organizational mode (), you must have read-only, DML, or DDL permissions for the target data source.

  tip

  Read-only permissions only support query operations.

• In the commercial versions (, ), please ensure that your monthly/yearly subscription is not expired, as it may result in the inability to use the Database DevOpsservice. You can quickly check the remaining quota and expiration date at the top right corner of the NineData console page.



Operation Steps

1. Log in to the NineData Console.

2. Click on in the left navigation bar.

   tip

   If you have previously logged in to the data source and have not closed it, you will automatically enter the data source page.

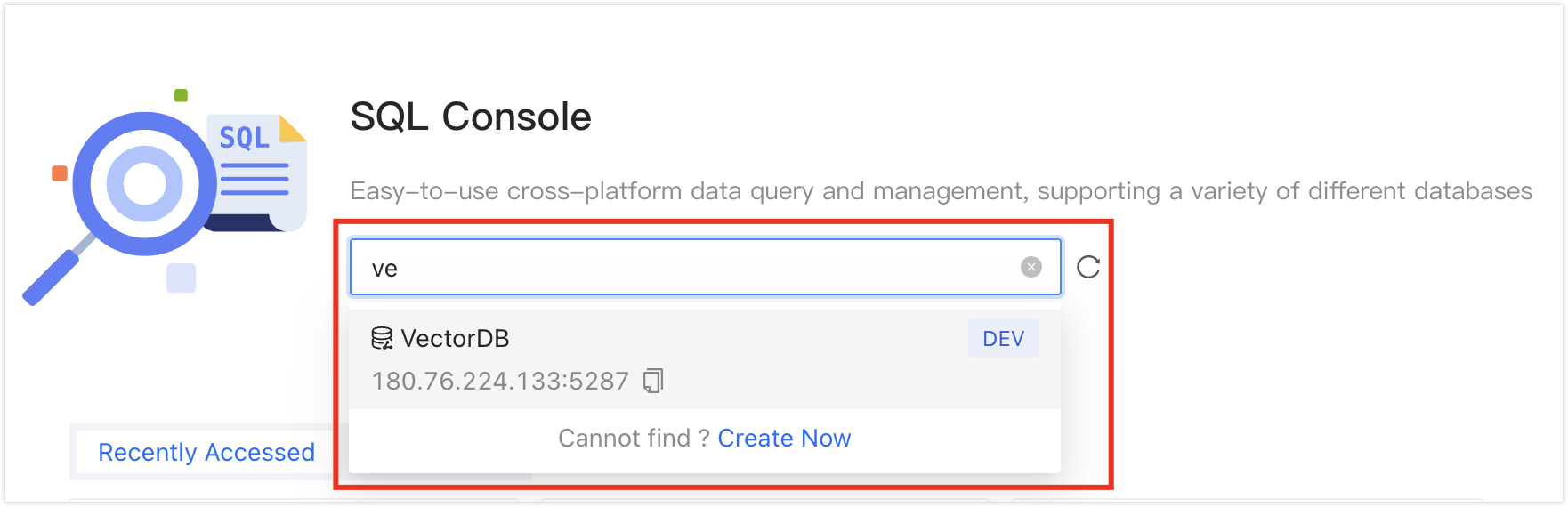

3. Click on the text box under , and available data sources will pop up. Click on the target data source and click to jump to the SQL Console.

   tip

   • If you haven't created Data Source before, a blank page will be displayed. In this case, please click on on the page.

   • If there are multiple data sources, you can enter all or part of the keywords in the box for precise or fuzzy search. The following fields are supported for search:

     • Data source name

     • IP address



4. After opening the SQL Console, you can perform data development operations on the data source. For detailed usage of the SQL Console, please refer to Interface Description.

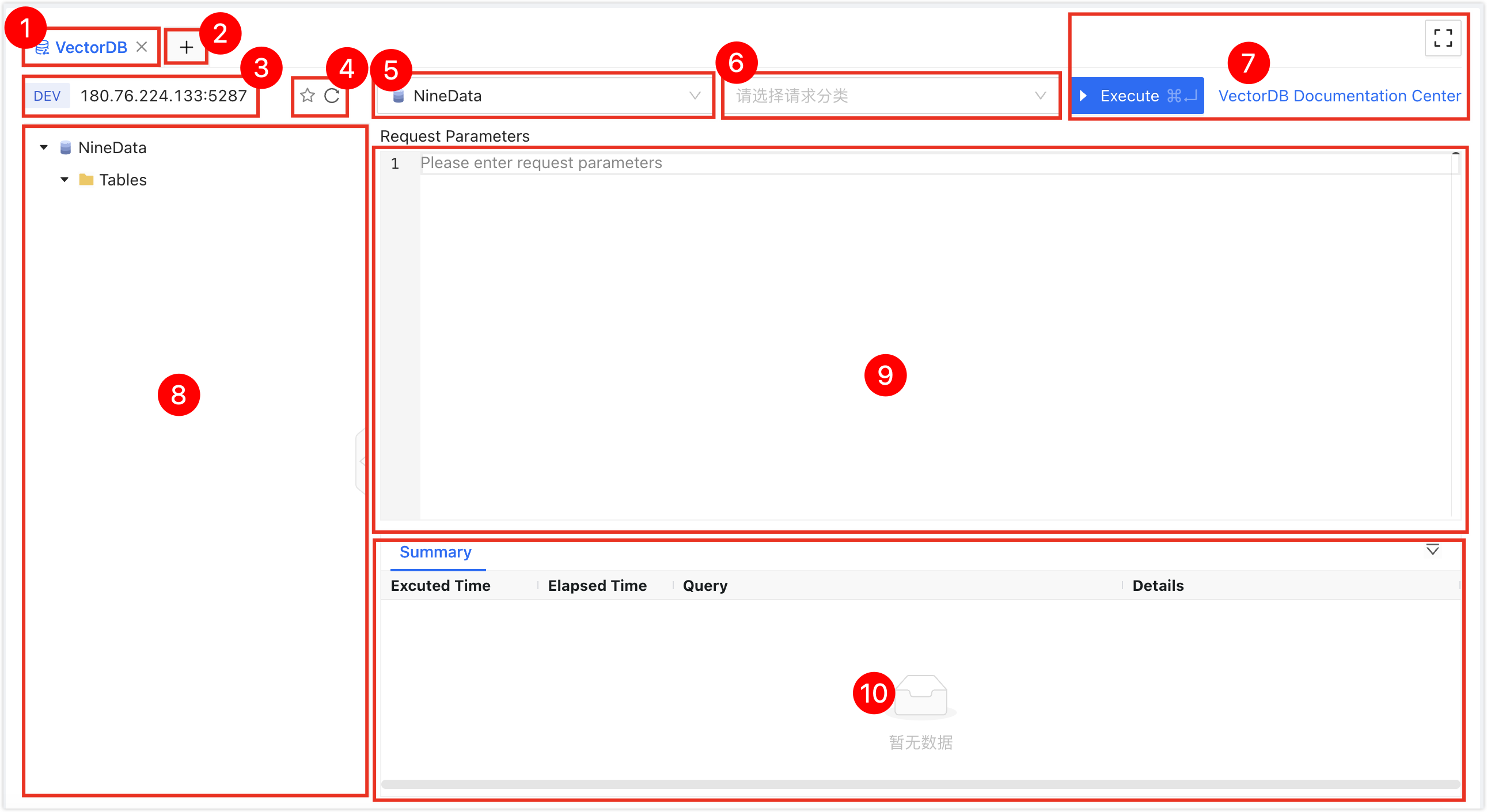

Interface Description

No.	Feature	Introduction
1	SQL Console Tab	Represents the currently opened data source SQL Console. Multiple SQL Consoles can be switched by clicking on the tabs. Click the X on the right side of the tab to close the SQL Console; double-click the tab to change the tab name; drag the tab to adjust the tab position. The right-click menu supports the following operations: : Open the current data source details window. : Change the name of the current tab. : Open an SQL Console for the current data source. : Open a new data source SQL Console. : Close the current SQL Console. : Close all other SQL Consoles except the current one. : Close all SQL Consoles to the left of the current SQL Console. : Close all SQL Consoles to the right of the current SQL Console. : Close all SQL Consoles.
2	Open Data Source	Select and open a new data source SQL Console.
3	Data Source Information	Displays the information of the current SQL Console's data source, including environment, IP address, and port number. Right-click menu: : Display the details of the current data source, including username, connection address, etc. : Open an SQL Console for the current data source. : Refresh data source information.
4	Favorite | Refresh	Favorite: Click the favorite icon to add the current data source to , and you can quickly select it when creating a new SQL Console. Refresh: Refresh the data in the current data source.
5	Database Name	Select the target database to perform SQL operations.
6	API Operation Request	For management operations of VectorDB, all operations selected here will ultimately be converted into standard calls to the native API of VectorDB. After selection, the system will automatically generate a JSON format request body sample in the editor, and you can directly adjust it on the sample. The supported operations are as follows: : , , , , : , , , , : , , , : , , , , , : , , , , , : , , , , , , , ,
7	Function Buttons	: Execute the selected VectorDB operation. : The official documentation link for Baidu Cloud Vector Database VectorDB. : Display the SQL Console in full-screen mode (browser size). After going full screen, click the top right to restore to the original SQL Console size.
8	Object Tree	Displays all libraries, tables, columns, and non-table objects in the current VectorDB in a tree format. You can perform the following operations: : If there are no libraries in VectorDB, click the button on the page; if there are already databases in VectorDB, right-click any database name and click . Enter in the pop-up window, then click . : Right-click the target database name, click , and then click in the confirmation window. : Right-click the target table name, click , view the table details, including Desc (table structure description), Alias (table alias information), Stats (table statistical information). Desc: Describes the complete metadata information of the table, including field definitions, index configurations, partition strategies, and other core attributes. Alias: The alias mapping relationship of the table, used to achieve the decoupling of logical table names and physical table names. Stats: Real-time statistical metrics of the table, used for monitoring and performance analysis. : Right-click any object, click , and open a new SQL Console tab for the current data source. : Right-click any object, click , refresh the index list.
9	Editor Window	The window for executing VectorDB operations, which supports the following functions: Execute VectorDB operations: Conveniently select the operation type to generate a JSON format request body sample, and support direct adjustments on the sample. Syntax Highlighting Right-click menu: : Execute the VectorDB operation at the cursor position. Common operations: Including , , , and . : Select the command at the cursor position.
10	Execution Information, Result Set	Displays the execution information and result set of the command. Execution Information: Includes execution time, execution duration, executed command, execution details, and other information. Result Set: Displays the return results of the command in JSON format. Hover the mouse over the tab of the target result set to display the command corresponding to that result set.
